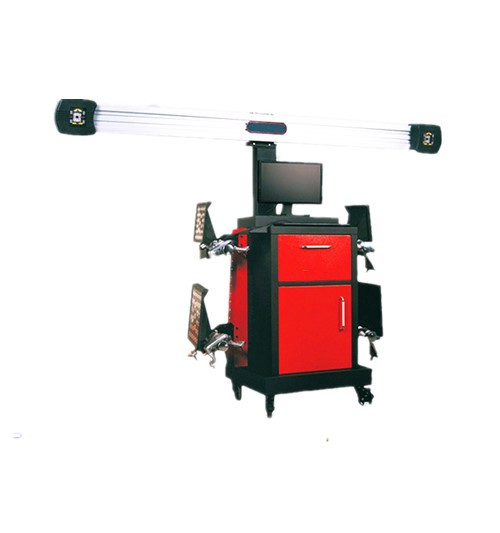

Product Introduction:
1. Advanced technology: The 3D location technology can test the more exact data according to the car body
2. Quickly test: The location test can be finished in 2 minutes, and location data can be read.
3. Exact data: Three-dimensional digital imaging location technology, the precision is 0.01°
4. High efficiency: Many precise location works can be finished in every day.
5. Simple operation: 3D animation leads the workers how to locate and adjust the car.
6. After-sales service: We offer to you free repair service in 5 years.
Test Item | Test precision | Test range |
Display accuracy | 0.1mm/0.01° | -- |
Total toe | ±0.01° | ±40° |
Camber angle | ±0.01° | ±45° |
Caster angle | ±0.02° | ±45° |
Kingpin angle | ±0.02° | ±45° |
Thrust angle | ±0.01° | ±40° |
Flinch angle | ±0.01° | ±40° |
Maximum steering angle | ±0.02° | ±50° |
Tread | ±2mm | 1219mm-2438mm |
Wheelbase | ±2mm | 2006mm-4572mm |
