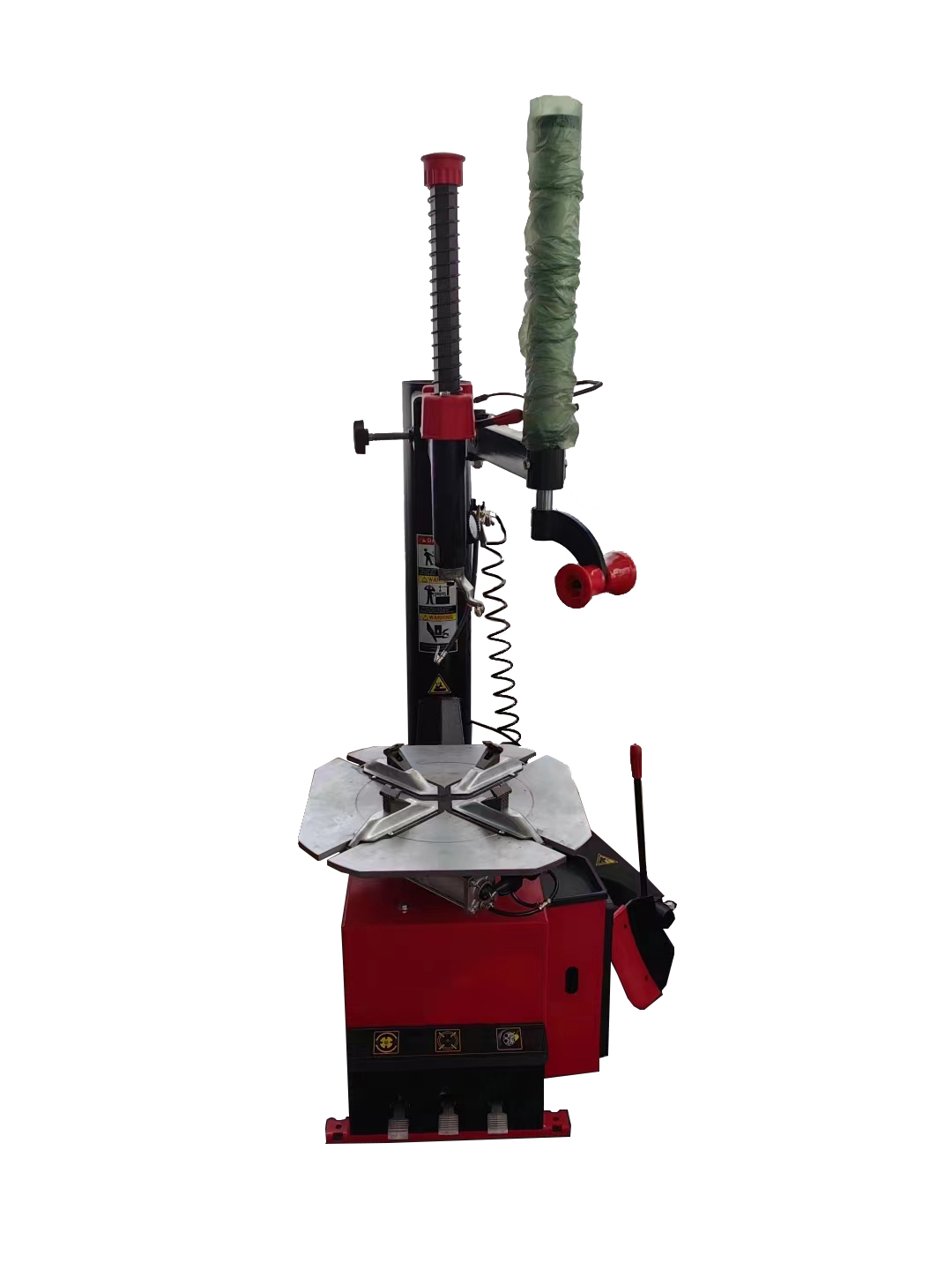

Product Introduction:
1. Changing the range of rim with jack catch by adjusting the claw seat position.
2. The link structure is automatic and centring motion structure with four claws on the turntable. It has synchronous ability and confirm center automatically when it clamped from the outside to the inside.
3. The design of one time forming processing machine of mobile car holder makes that it is not easy to be out of shape.
4. The working head is covered with hard chrome by fire with high efficiency to make sure the strength, tenacity and Wear resistance.
5. Working turntable has ability of synchronous centering and Fine tuning to make the working of tire dismantlement and installation more smooth.
6. When the machine is working, the noise is low.
7. There are protective case and protective pad when the tire tool such as working head, jack catch, crowbar, Tire shovel which touch the tire is dismentled or installed to make sure the rime is not be injured
8. The machine is dignified, thick plate and strong rigidity.
Model | BTJ101 |
Maximum Rim Diameter | 900mm |
Maximum Rim Width | 300mm |
Inner Supporting Rim | 10’-20’ or 12’-24’ |
Outer Supporting Rim | 10’-18’ |
Voltage | 220V/380V |
Motor Power | 1.1KW/0.75KW |
Tire Pressure | 2500kg |
Operation Pressure | 8-10bar |
Unlock Way | Manual/Pneumatic |
