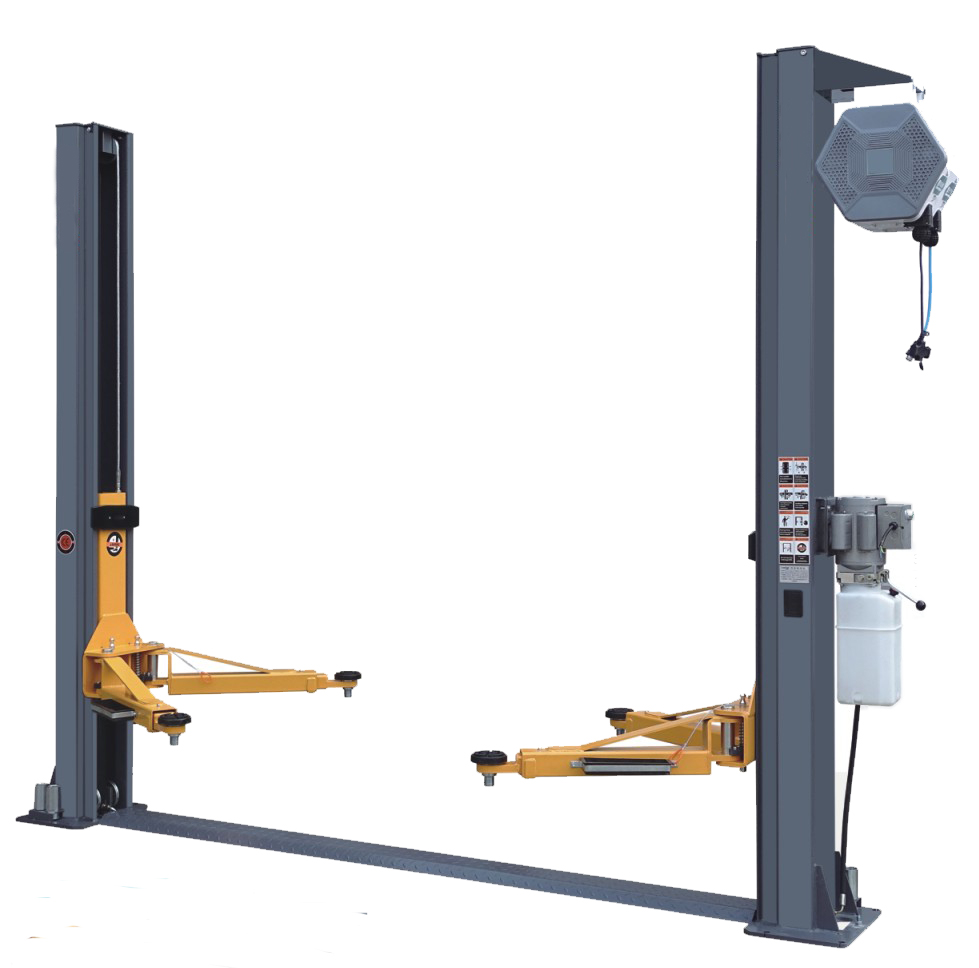

2 Posts Car Lifter(GSJ 101)

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

Product Features:

1. The double hydraulic cyclinder to make sure balanced lifting.

2. The protection device with double assurance and self-locking.

3. Wirerope stable system.

4. Chain lifting system.

5. Power plant can be installed in every side of car lifter.

6. The voltage of 380V or 220V can be choosed, it is convenient to use.


Requirements of installation:

1. The concrete board thickness must more than 200mm.

2. The concrete strength must more than 200#, and the configured rebar in two ways

3. The foundation surface's level difference is less than 5mm

4. If the concrete thickness on the ground is more than 200mm, when the ground level is qualified, the device can be fixed directly by using expansion screw.

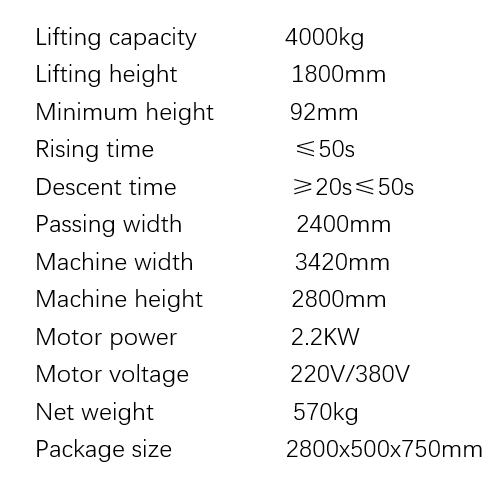

Model

JSJ101

Lifting Capacity

4T

Lifting Height

1750mm

Lifting Time

60S

Decline Time

20-40s

Total Height

2800mm

Total Width

3250mm

Width between 2   posts

2700mm

Lowest Lifting   Height

80mm

Carriage Length

1260mm

Motor Power

2.2KW

Total Weight

500kg

Voltage

380V   or 220V
