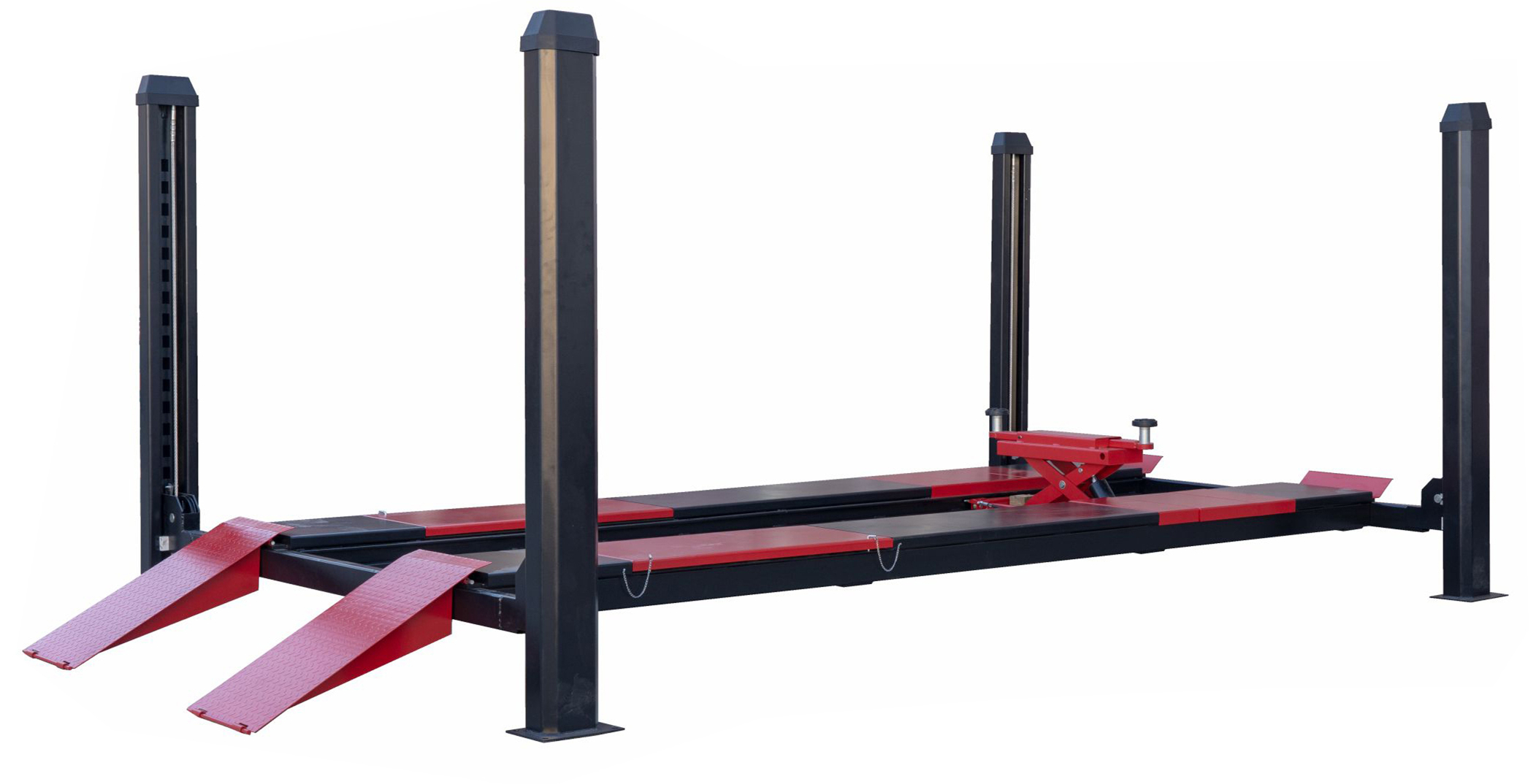

4 Post Car Lifter(GSJ103)

Contact: *
Company: MSN/skype:
Subject:
Tel: Fax:
E-mail: * Website:
Content: *
Code: *(marked *should be filled)

Description

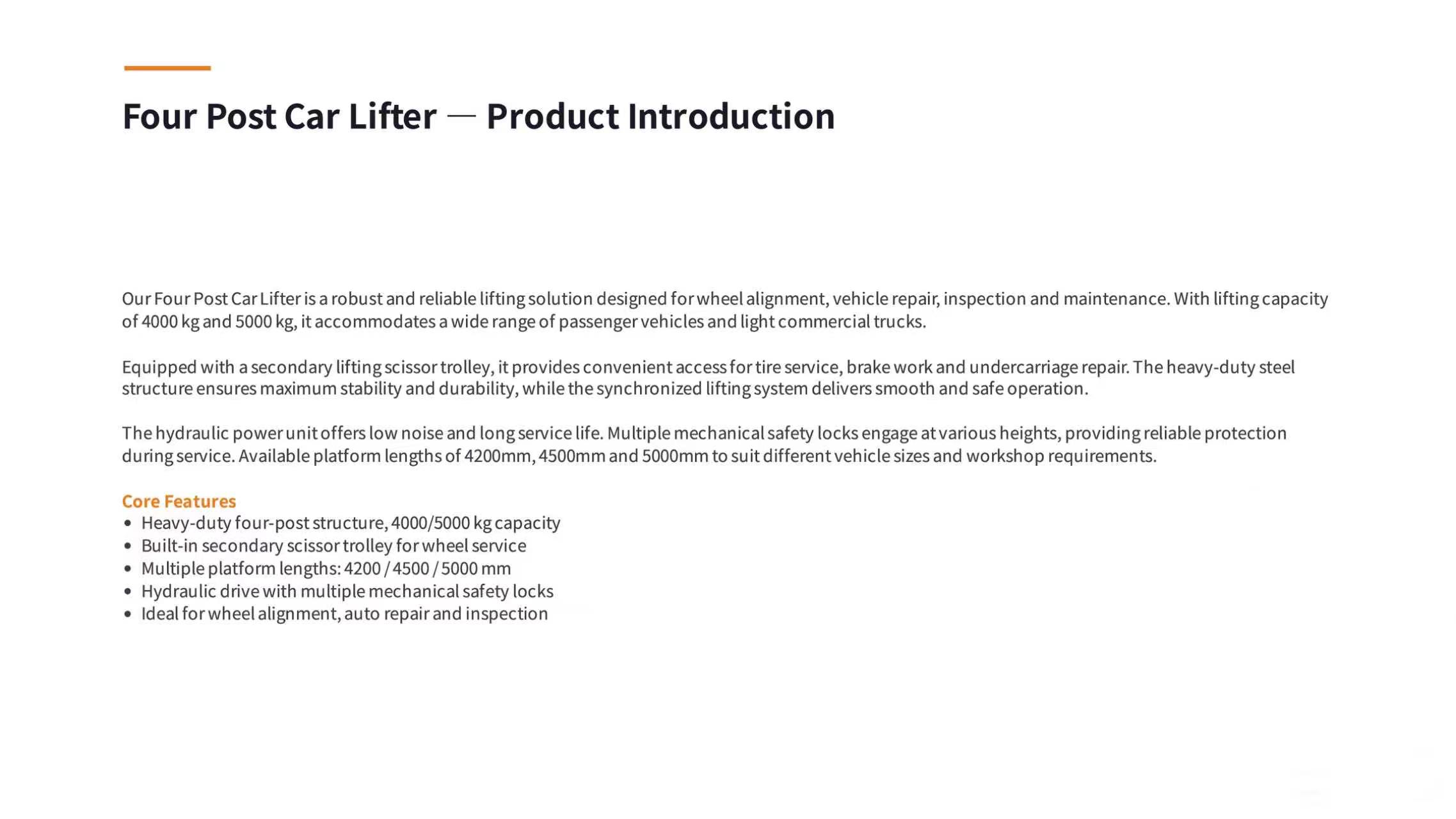

Product Features:
1. Hydraulic drive and wirerope rotation make the lifting balance.
2. It is easy to operate, no leakage, the oil pressure is steady, low noise, and high power.
3. The hydraulic cyclinder adopts the imported seal ring to make it more durable.
4. The car lifter has overload protection, short rope protection, and self-locking protection in lifting. Every post has safety protection device such as locking device.


Model

JSJ103

Lifting Capacity

4T/5T

A Lifting height

1500mm

Second Lifting   height

270-540mm

Platform length

4300mm/5100mm

Device length

5550mm/6300mm

Device width

3250mm/3320mm

Width between   columns

2850mm/2970mm

Column height

2000mm/2020mm

Motor power

2.2KW/3.0KW

Voltage

380V or 220V

Total weight

1100kg/1200kg

Unlock way

Manual/Automatic
